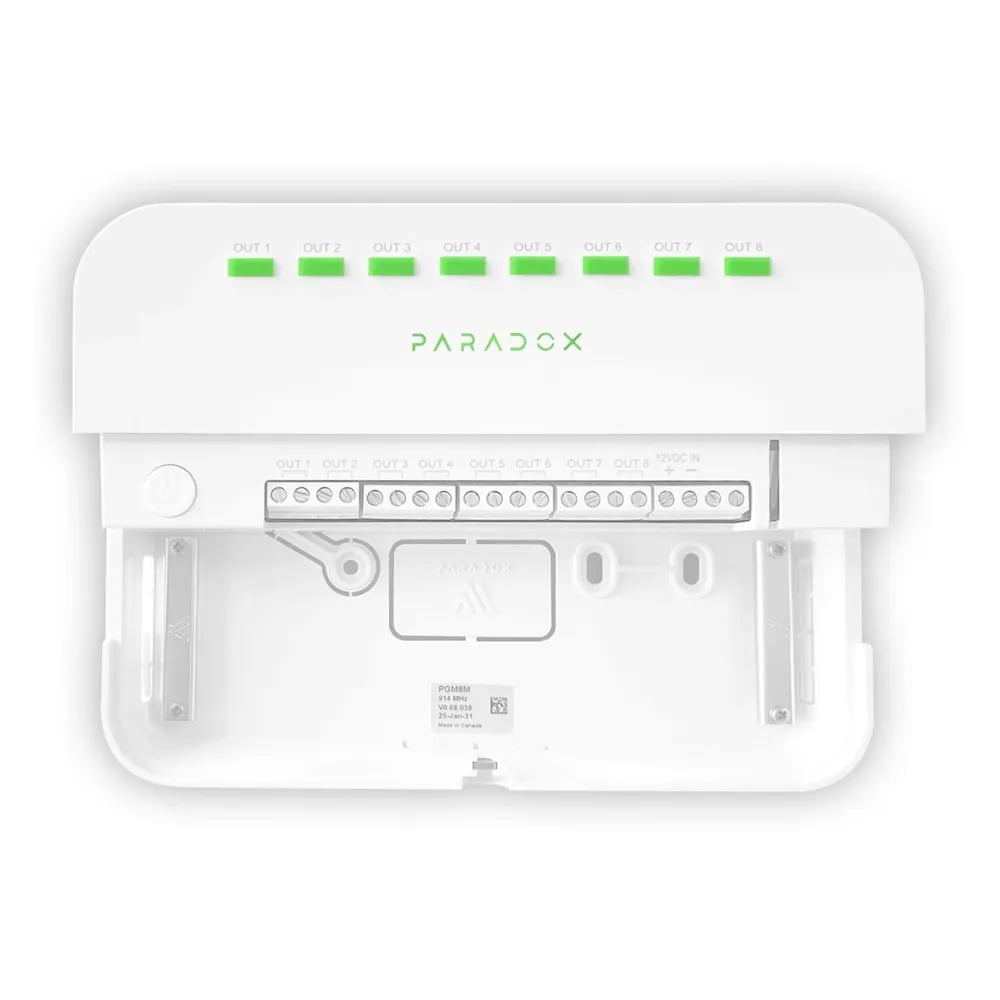

Wireless PGM expander Paradox PGM8M (8 PGM, 868 MHz, for M25 control panel)
- General
- ModelPGM8M
- TypeWireless 8-Output Expander
- CompatibilityParadox M25 centrale (868 MHz)
- Outputs8 programmable relay outputs, each up to 24V/1A max (switched)
- Wireless TypeGFSK two-way with frequency and encryption hopping
- RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
- RF Power868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
- ControlManual control of each output, status visible in app
- Status IndicatorsApp shows output ON/OFF, tamper, power supply, battery, temperature, TX/RX
- Transmission Time<20 ms
- Supervision Time20 min, 10 min (default), or 3 min
- Power Supply12 VDC input, 1 A
- Battery1 × 3.7V Li-ion, 5000 mAh (optional, up to 10 days backup)
- Firmware UpgradeRemotely over the air (via BlueEye app)
- Installation EnvironmentIndoor
- Operating Temperature–20 °C to +50 °C (–4 °F to 122 °F); charging 0 °C to +40 °C
- Auto-LearnYes
- ColorWhite
- Dimensions18W × 13H × 4.5D cm (7.09W × 5.12H × 1.79D in.)
- Weight0.36 kg (with battery)
- CertificationsCE, FCC 15.247
Specifications
