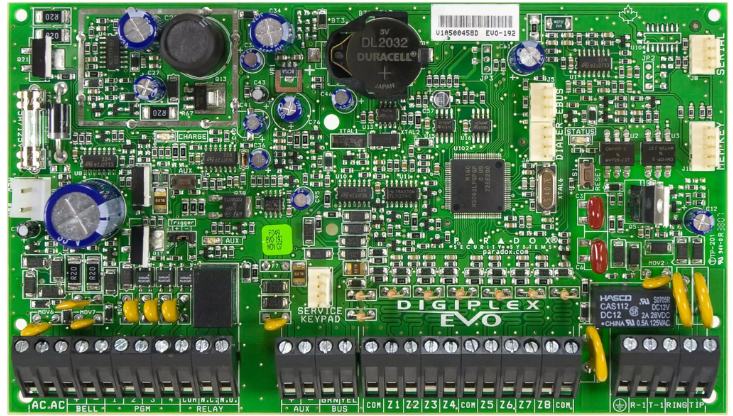

PARADOX DIGIPLEX EVO192
EVO192- 8 on-board zones (16 w/ zone doubling)
- Built-in access control features
- Supports PCS Series, IP Module (IP100) and Voice Module (VDMP3)
- In-field firmware upgrade via 307USB and WinLoad
- Compatible with NEware V4.0 or higher
- Automatic Daylight Savings Time feature
- PGM1 can be used as a 2-wire smoke input
- Program remote controls using the master or installer codes
- Built-in real-time clock backup battery
- 1.7A switching power supply
- 1 supervised bell output, auxiliary output and telephone line
- Push button software reset (reset to default values and restart)
- Push button to activate or deactivate the Auxiliary output
- Fits in a 28cm x 28cm x 7.6cm (11in x 11in x 3in) metal box
- The EVO series share the same programming for easy panel substitution
| Feature | EVO192 |
| Maximum Zones | 192 |
| PGMs | 192 (5 on board) |
| Multibus |  |
| User Codes | 999 |
| Partitions | 8 |
| Events Buffered | 2048 |
| Expansion Modules | 254 |
| Remote Controls | 999 (w/RTX3) |
Specifications
| Brand | PARADOX |
