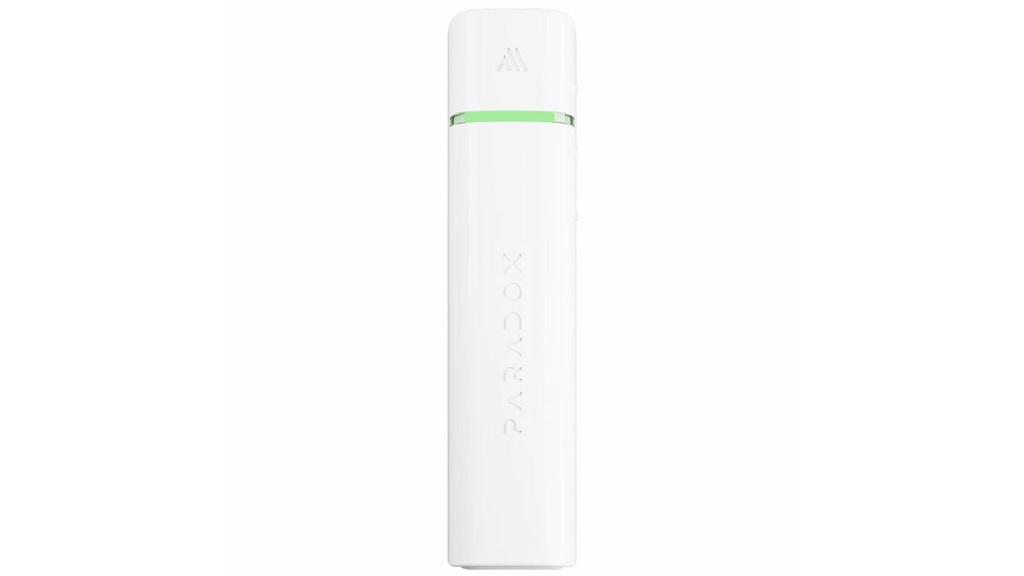

Wireless door contact Paradox DCT2M (white)
DCT2M- General
- ModelDCT2M
- TypeMiniature Wireless Door/Window Magnetic Contact
- CompatibilityParadox M25 centrale (868 MHz, Grey, compact)
- Wireless TypeGFSK two-way with frequency and encryption hopping
- RF Frequency868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz) – region dependent
- RF Power868 MHz: up to +14 dBm radiated; 914 MHz: up to +22 dBm (where permitted)
- Magnet DistancesClose: <1 cm (0.4"); Open: >3 cm (1.1")
- Transmission Time<20 ms
- Supervision Time20 min, 10 min (default), or 3 min
- IndicatorsLED indication for opening, closing, and online; app shows battery, temperature, TX/RX values
- Battery1 × CR123 lithium, up to 6+ years (normal usage)
- External Contact ResistanceUp to 50 Ω
- Firmware UpgradeRemotely over the air (via BlueEye app)
- Installation EnvironmentIndoor
- Operating Temperature–30 °C to +50 °C (–22 °F to 122 °F)
- Auto-LearnYes
- ColorsWhite, Brown, Grey
- Dimensions2W × 9H × 2D cm (0.75W × 3.5H × 0.75D in.)
- WeightSensor: 33 g; Magnet: 12 g
- CertificationsCE, EN 50131-2-6, EN 50131-6, EN 50131-5-3, FCC 15.247
Specifications
| Brand | PARADOX |
